Asset layout widgets

Updated: October 2, 2025

Important  This feature is available only in the latest UI.

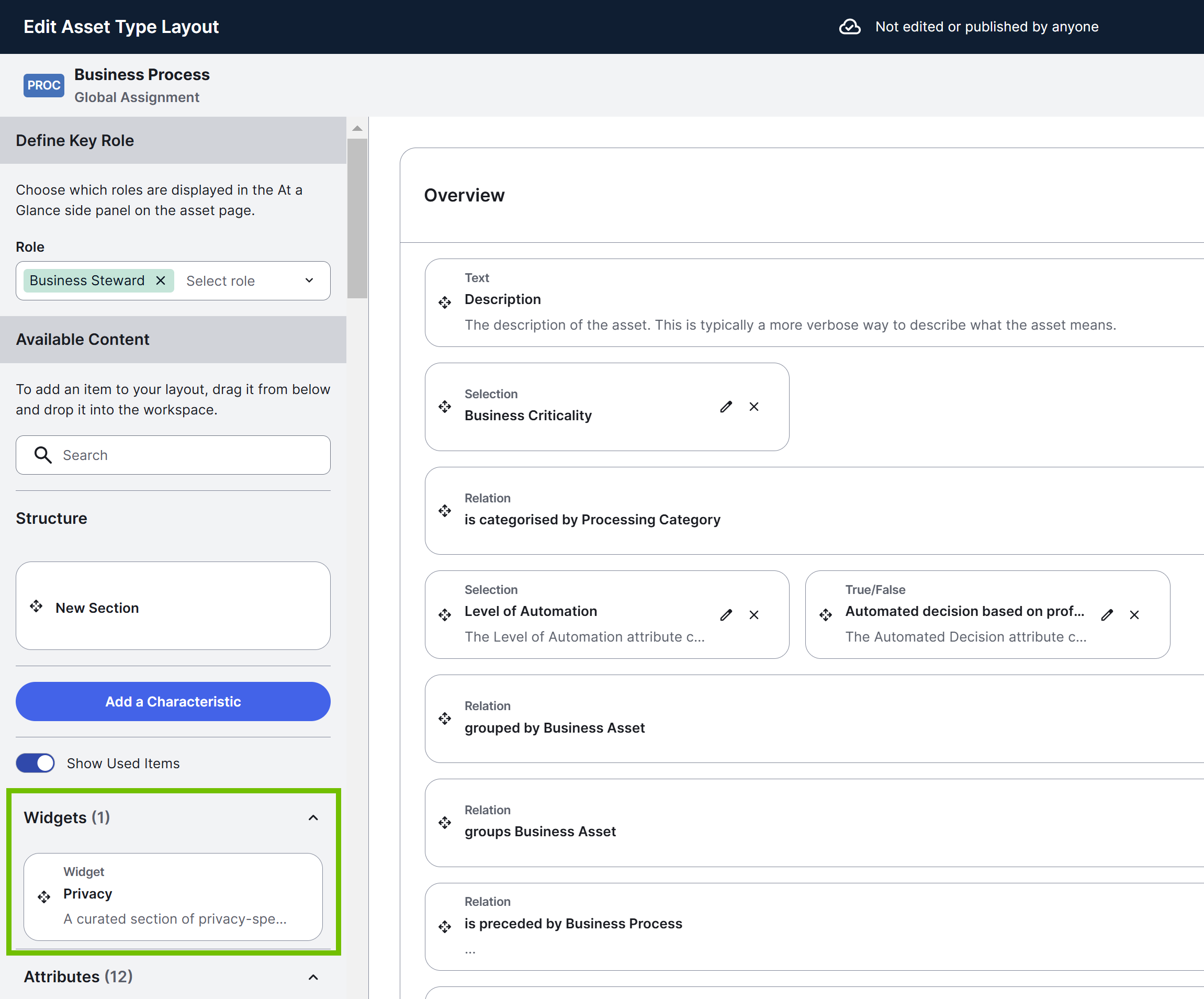

Asset layout widgets enable you to show custom content on all the asset pages of a given asset type. For example, if you want to show Catalog elements on the asset pages of the Column asset type, you can achieve this using widgets. As an administrator, you can add widgets to the asset pages of a given asset type or reposition them when you edit the asset page layout for that asset type.

Asset types with widgets

The following table lists the asset types with an out-of-the-box page layout that contains widgets. The table also shows if a widget is read-only and the default sections in which the widgets appear.

Asset type	Widget	Description	Read-only?	Section
AI Agent	Lifecycle Tracker	Enables users to monitor the evolution of AI use cases. They can view assessment history and statuses, start new assessments, add assessments and sign-off activities, record decisions, and advance the AI use case to its next lifecycle stage.	No	Lifecycle Tracker
AI Use Case	Lifecycle Tracker	Enables users to monitor the evolution of AI use cases. They can view assessment history and statuses, start new assessments, add assessments and sign-off activities, record decisions, and advance the AI use case to its next lifecycle stage. Tip You can define whether the Lifecycle tracker widget appears expanded or collapsed (default state) on the AI Use Case asset pages using .	No	Lifecycle Tracker
	Other Policies That Apply	Policies linked to training data, inference data, output data, or AI Models linked to the AI use case.	Yes	Legal, Ethics and Compliance
	Privacy Context	Data categories linked to data columns.	Yes	Privacy Context
	Diagram	Diagram view of the AI Use Case asset, depicting all of the relations that exist between the AI use case and other assets.	Yes	Data Flow
Column	Catalog Overview	Description, description from source, business context, categorization, source tags. For more information, go to Catalog asset pages.	Yes	Overview
	Descriptive Statistics	Attributes populated by metadata synchronization and data profiling.	Yes	Descriptive Statistics
Data Category	Data Classes	Data classes linked to the data category.	No	Overview
Data Set	Catalog Overview	Description and business context. For more information, go to Catalog asset pages.	Yes	Overview
	Catalog Relation	"Data Set contains Data Element" relation.	No	Data Elements
Database	Catalog Overview	Description, description from source, and source tags. For more information, go to Catalog asset pages.	Yes	Overview
Database View	Catalog Overview	Description, description from source, business context, categorization, and source tags.	Yes	Overview
	Catalog Relation	"Table contains Column" relation.	No	Columns
Data Product	Output Ports Viewer	Displays assets related to the data product via relation "exposes data as/is output port". For more information, go to About data products.	Yes	Output
	Diagram	Diagram view that shows the data product and its related assets.	No	Diagram
Deployed AI Model	Lifecycle Tracker	Enables users to monitor the evolution of AI use cases. They can view assessment history and statuses, start new assessments, add assessments and sign-off activities, record decisions, and advance the AI use case to its next lifecycle stage.	No	Lifecycle Tracker
	Other Policies That Apply	Policies linked to training data, inference data, output data, or AI use cases linked to AI models.	Yes	Model Information
Foundational AI Model	Lifecycle Tracker	Enables users to monitor the evolution of AI use cases. They can view assessment history and statuses, start new assessments, add assessments and sign-off activities, record decisions, and advance the AI use case to its next lifecycle stage.	No	Lifecycle Tracker
Schema	Catalog Overview	Description, description from source, and source tags. For more information, go to Catalog asset pages.	Yes	Overview
	Catalog Relation	"Schema contains Table" relation.	No	Tables
Table	Catalog Overview	Description, description from source, business context, categorization, and source tags. For more information, go to Catalog asset pages.	Yes	Overview
	Catalog Relation	"Table contains Column" relation.	No	Columns

Diagram widget

The Diagram widget is available for all asset types. You can use this widget to show a specific diagram view on the Summary tab of the asset pages.

Configure the Diagram widget

Prerequisites

You have a global role with the Product Rights > System administration global permission.

Steps

1. Open the asset type.
   1. On the main toolbar, click → Settings.
      The Settings page opens.
   2. Click the Operating Model tab.
      Operating Model settings are shown.
   3. On the Asset types tab, in the table, click the name of the asset type you want to open.
      The asset type page opens.

   Tip You can also open an asset type from an asset page by clicking the asset type in the upper-left corner of the asset page.

2. In the left pane, click the relevant assignment, and then click Characteristics.
   A table containing all the characteristic types assigned to the asset type is shown.
3. On the Characteristics tab, click Edit layout.
   The Edit layout page opens.
4. Drag the Diagram widget from the left pane to the layout.
5. Move the Diagram widget to the required position using .
6. In the Diagram widget, click .
   The Settings dialog box appears.
7. In the Diagram view drop-down list, select the diagram view that you want to show on the Summary tab of the asset pages.
   Note 

   • The Diagram view drop-down list contains both public diagram views and your private diagram views. If you select a private view, it isn't shown to other users.
   • For the AI Use Case asset type, the default diagram view is Data Flow.
   • For the Data Product asset type and its descendant asset types, the default diagram view is Data Product.
   • For all other asset types, the default diagram view is Explore.
8. Click Save.

9. Click Publish.
   Your changes are published and applied to all the asset pages of the asset type.
